On-premise SQL Server to Azure SQL Migration using Log Replay Service (LRS)-Part 4 Additional steps

Jagath Jayaprakash
Contents hide
1 Migration of multiple databases
2 Automating database migration for multiple databases.
3 Functional limitations of LRS are:
4 Troubleshooting
4.1 Share this to your network:

Migration of multiple databases

You must place backup files for different databases in separate folders inside Azure Blob Storage container. All backup files for a single database must be placed inside the same folder, as there must not exist subfolders for an individual database. LRS must be started separately for each database pointing to the full URI path of Azure Blob storage container and the individual database folder.

Below is an example of the folder structure and URI specification required when invoking LRS for multiple databases. Start LRS separately for each database, specifying the full URI path to the Azure Blob Storage container and the individual database folder.

-- Place all backup files for database 1 in its own separate folder within a storage container. No further subfolders are allowed under database1 folder for this database.
https://<mystorageaccountname>.blob.core.windows.net/<mycontainername>/database1/<all database 1 backup files>

-- Place all backup files for database 2 in its own separate folder within a storage container. No further subfolders are allowed under database2 folder for this database.
https://<mystorageaccountname>.blob.core.windows.net/<mycontainername>/database2/<all database 2 backup files>

-- Place all backup files for database 2 in its own separate folder within a storage container. No further subfolders are allowed under database3 folder for this database.
https://<mystorageaccountname>.blob.core.windows.net/<mycontainername>/database3/<all database 3 backup files>

Automating database migration for multiple databases.

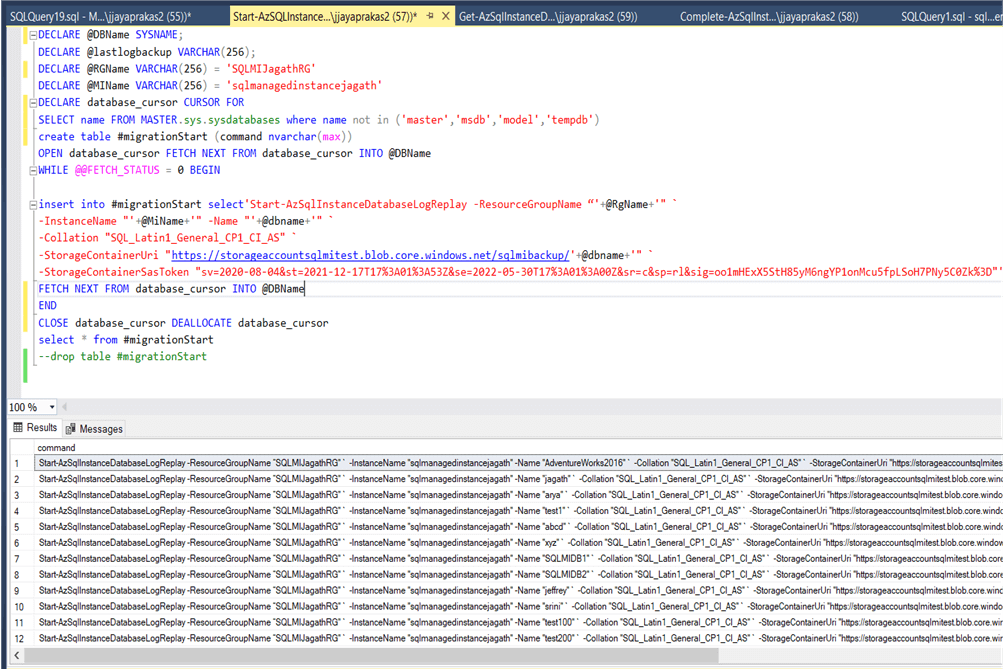

Below is a T-SQL script to generate the Start operation on LRS scripts for more than one database. Once you run this script you can get the powershell script generated as shown below.

DECLARE @DBName SYSNAME;
DECLARE @lastlogbackup VARCHAR(256);
DECLARE @RGName VARCHAR(256) = 'SQLMIJagathRG'
DECLARE @MIName VARCHAR(256) = 'sqlmanagedinstancejagath'
DECLARE database_cursor CURSOR FOR

SELECT name FROM MASTER.sys.sysdatabases where name not in ('master','msdb','model','tempdb')

create table #migrationStart (command nvarchar(max))

OPEN database_cursor FETCH NEXT FROM database_cursor INTO @DBName
WHILE @@FETCH_STATUS = 0 BEGIN

insert into #migrationStart select'Start-AzSqlInstanceDatabaseLogReplay -ResourceGroupName “'+@RgName+'" `
-InstanceName "'+@MiName+'" -Name "'+@dbname+'" `
-Collation "SQL_Latin1_General_CP1_CI_AS" `
-StorageContainerUri "https://storageaccountsqlmitest.blob.core.windows.net/sqlmibackup/'+@dbname+'" `
-StorageContainerSasToken "mySASToken"'
FETCH NEXT FROM database_cursor INTO @DBName
END

CLOSE database_cursor DEALLOCATE database_cursor
select * from #migrationStart
--drop table #migrationStart

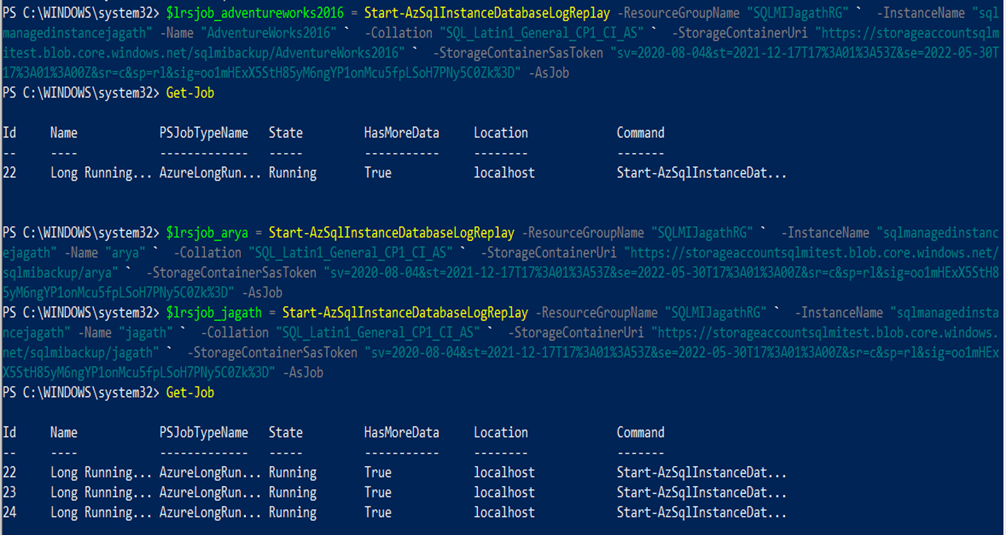

Now we can run the migrations via powershell job to execute them parallelly and save time. Please refer to the section here. Below screenshot shows once we start the LRS jobs

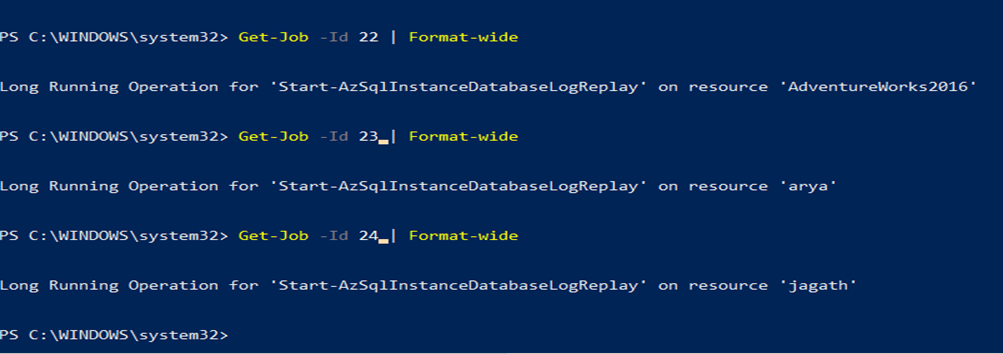

To identify the jobs tagged to which databases, run the command: Get-Job -Id<Id> | Format-Wide

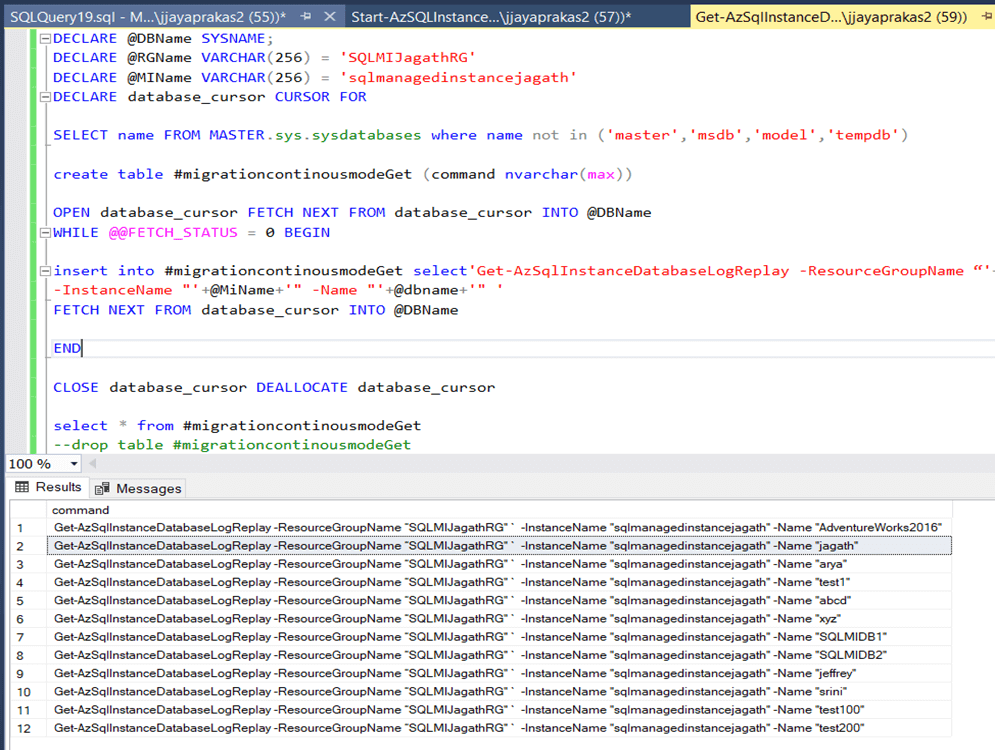

Next is to monitor the progress of the migration. For that we need to use the below script. Once you run the script can get the powershell script.

DECLARE @DBName SYSNAME;
DECLARE @RGName VARCHAR(256) = 'SQLMIJagathRG'
DECLARE @MIName VARCHAR(256) = 'sqlmanagedinstancejagath'
DECLARE database_cursor CURSOR FOR

SELECT name FROM MASTER.sys.sysdatabases where name not in ('master','msdb','model','tempdb')

create table #migrationcontinousmodeGet (command nvarchar(max))

OPEN database_cursor FETCH NEXT FROM database_cursor INTO @DBName
WHILE @@FETCH_STATUS = 0 BEGIN

insert into #migrationcontinousmodeGet select'Get-AzSqlInstanceDatabaseLogReplay -ResourceGroupName “'+@RgName+'" `
-InstanceName "'+@MiName+'" -Name "'+@dbname+'" '
FETCH NEXT FROM database_cursor INTO @DBName

END

CLOSE database_cursor DEALLOCATE database_cursor

select * from #migrationcontinousmodeGet
--drop table #migrationcontinousmodeGet

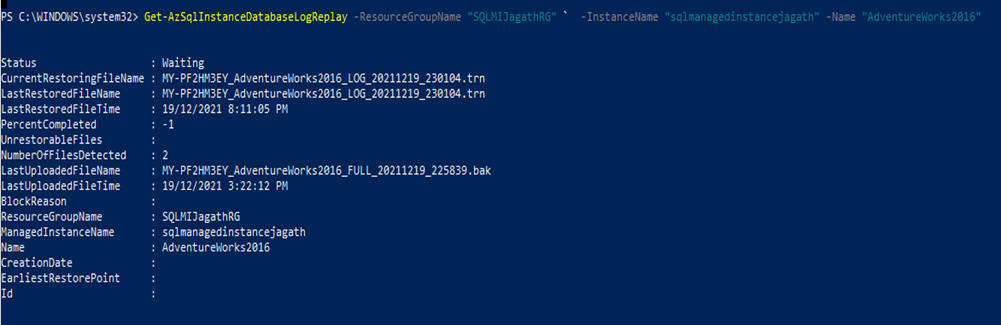

Below screenshot shows the progress of migration for database: AdventureWorks2016

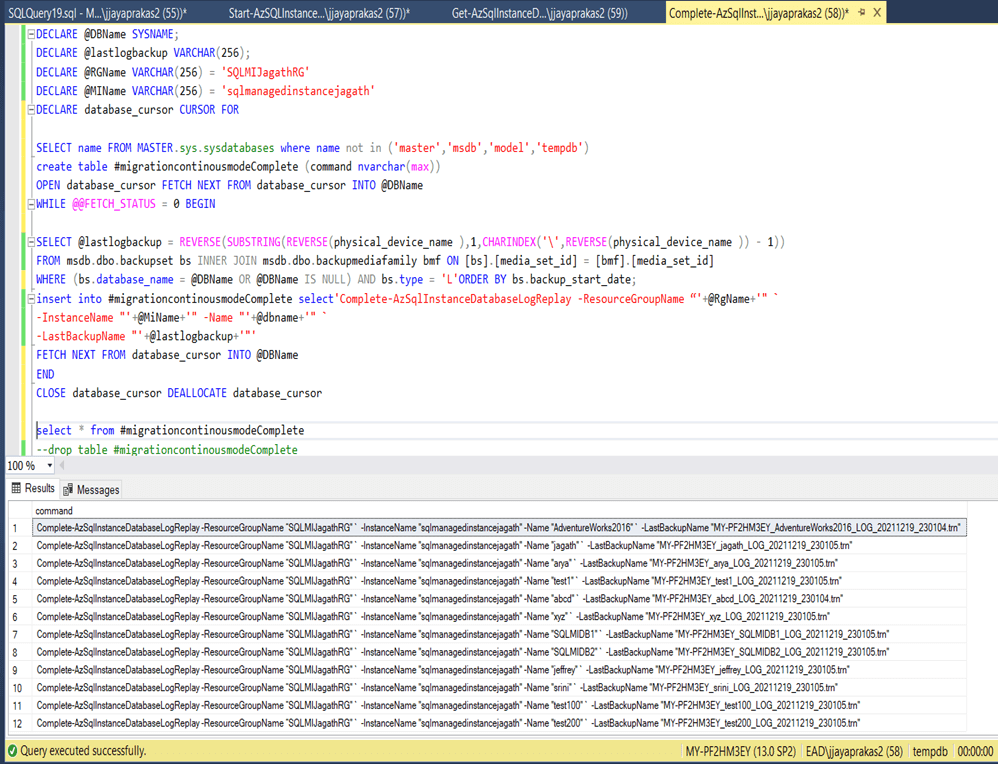

Final Step is to complete migration(Continuous Mode). For that we need to use the below script. Once you run the script can get the powershell script as displayed in the below screenshot.

DECLARE @DBName SYSNAME;
DECLARE @lastlogbackup VARCHAR(256);
DECLARE @RGName VARCHAR(256) = 'SQLMIJagathRG'
DECLARE @MIName VARCHAR(256) = 'sqlmanagedinstancejagath'
DECLARE database_cursor CURSOR FOR

SELECT name FROM MASTER.sys.sysdatabases where name not in ('master','msdb','model','tempdb')
create table #migrationcontinousmodeComplete (command nvarchar(max))
OPEN database_cursor FETCH NEXT FROM database_cursor INTO @DBName
WHILE @@FETCH_STATUS = 0 BEGIN

SELECT @lastlogbackup = REVERSE(SUBSTRING(REVERSE(physical_device_name ),1,CHARINDEX('\',REVERSE(physical_device_name )) - 1))
FROM msdb.dbo.backupset bs INNER JOIN msdb.dbo.backupmediafamily bmf ON [bs].[media_set_id] = [bmf].[media_set_id]
WHERE (bs.database_name = @DBName OR @DBName IS NULL) AND bs.type = 'L'ORDER BY bs.backup_start_date;
insert into #migrationcontinousmodeComplete select'Complete-AzSqlInstanceDatabaseLogReplay -ResourceGroupName “'+@RgName+'" `
-InstanceName "'+@MiName+'" -Name "'+@dbname+'" `
-LastBackupName "'+@lastlogbackup+'"'
FETCH NEXT FROM database_cursor INTO @DBName
END
CLOSE database_cursor DEALLOCATE database_cursor

select * from #migrationcontinousmodeComplete
--drop table #migrationcontinousmodeComplete

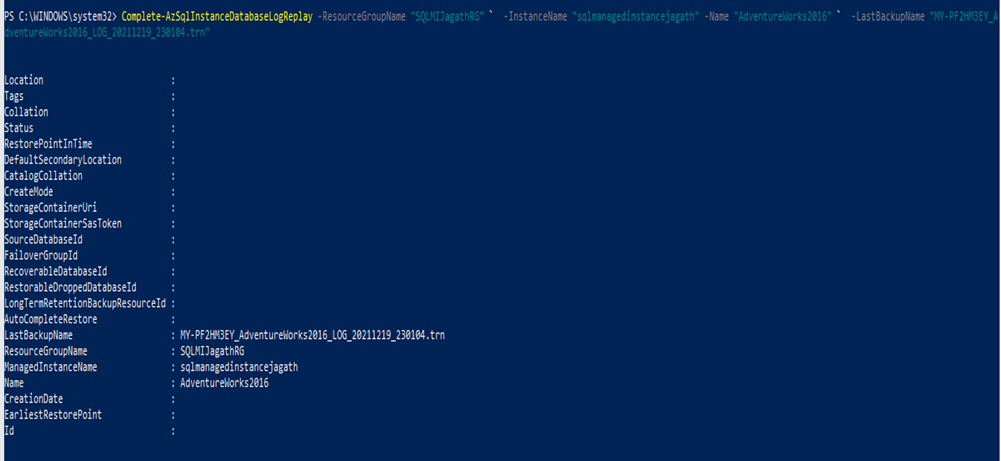

Below screenshot shows the completion of migration of AdventureWorks2016 database.

Functional limitations of LRS are:

Troubleshooting

After you start LRS, use the monitoring cmdlet (get-azsqlinstancedatabaselogreplay or az_sql_midb_log_replay_show) to see the status. If LRS fails to start after some time and you get an error, check for the most common issues:
