OpenShift 4: Splunk HEC Integration

Image: https://unsplash.com/@lukechesser

NOTE: This article focused on technical feasibility and features. For production usage this require detail implementation discussion.

Objective.

We want to ship containers and apiserver audit log, objects and K8s metrics (not OpenShift monitoring metrics) to external Splunk via HEC.

Prereq.

Steps.

NOTE: Ensure you are logged in to cluster as cluster-admin via oc client prior run below steps.

1. Go and get free splunk and we are going to install it.

2. We have the RPM ready and execute the installation:

#>  ls -rlt splunk*
-rw-r--r--. 1 root root 510124954 Feb 13 00:48 splunk-8.0.2-a7f645ddaf91-linux-2.6-x86_64.rpm


#> rpm -ivh splunk-8.0.2-a7f645ddaf91-linux-2.6-x86_64.rpm
warning: splunk-8.0.2-a7f645ddaf91-linux-2.6-x86_64.rpm: Header V4 RSA/SHA256 Signature, key ID b3cd4420: NOKEY
Verifying...                          ################################# [100%]
Preparing...                          ################################# [100%]
Updating / installing...
   1:splunk-8.0.2-a7f645ddaf91        ################################# [100%]
complete

3. Start splunk server:

#> cd /opt/splunk/bin
#> ./splunk start --accept-license

This appears to be your first time running this version of Splunk.

Splunk software must create an administrator account during startup. Otherwise, you cannot log in.
Create credentials for the administrator account.
Characters do not appear on the screen when you type in credentials.

Please enter an administrator username: admin
Password must contain at least:
   * 8 total printable ASCII character(s).
Please enter a new password:
Please confirm new password:
Copying '/opt/splunk/etc/openldap/ldap.conf.default' to '/opt/splunk/etc/openldap/ldap.conf'.
Generating RSA private key, 2048 bit long modulus
........................................................................+++++
.....................................................................+++++
e is 65537 (0x10001)
writing RSA key

Generating RSA private key, 2048 bit long modulus
.+++++
..+++++
e is 65537 (0x10001)
writing RSA key

Moving '/opt/splunk/share/splunk/search_mrsparkle/modules.new' to '/opt/splunk/share/splunk/search_mrsparkle/modules'.

Splunk> Another one.

Checking prerequisites...
	Checking http port [8000]: open
	Checking mgmt port [8089]: open
	Checking appserver port [127.0.0.1:8065]: open
	Checking kvstore port [8191]: open
	Checking configuration... Done.
		Creating: /opt/splunk/var/lib/splunk
		Creating: /opt/splunk/var/run/splunk
		Creating: /opt/splunk/var/run/splunk/appserver/i18n
		Creating: /opt/splunk/var/run/splunk/appserver/modules/static/css
		Creating: /opt/splunk/var/run/splunk/upload
		Creating: /opt/splunk/var/run/splunk/search_telemetry
		Creating: /opt/splunk/var/spool/splunk
		Creating: /opt/splunk/var/spool/dirmoncache
		Creating: /opt/splunk/var/lib/splunk/authDb
		Creating: /opt/splunk/var/lib/splunk/hashDb
New certs have been generated in '/opt/splunk/etc/auth'.
	Checking critical directories...	Done
	Checking indexes...
		Validated: _audit _internal _introspection _metrics _telemetry _thefishbucket history main summary
	Done
	Checking filesystem compatibility...  Done
	Checking conf files for problems...
	Done
	Checking default conf files for edits...
	Validating installed files against hashes from '/opt/splunk/splunk-8.0.2-a7f645ddaf91-linux-2.6-x86_64-manifest'
	All installed files intact.
	Done
All preliminary checks passed.

Starting splunk server daemon (splunkd)...
Generating a RSA private key
....+++++
..+++++
writing new private key to 'privKeySecure.pem'
-----
Signature ok
subject=/CN=bastion.local.bytewise.my/O=SplunkUser
Getting CA Private Key
writing RSA key
Done
                                                           [  OK  ]

Waiting for web server at # to be available.... Done


If you get stuck, we're here to help.
Look for answers here: http://docs.splunk.com

The Splunk web interface is at #

Do not forget to open up a firewall rules for 8000/tcp 8089/tcp 8191/tcp 8088/tcp. Or any other custom port you configured.

4. Install helm as Splunk HEC will depending on helm to deploy the HEC stack on OpenShift.

5. Next create a project for splunk HEC called “splunk-connect”.

#> oc new-project splunk-connect
#> oc project splunk-connect

6. Create new index as per below list. Settings > Indexes > New Index

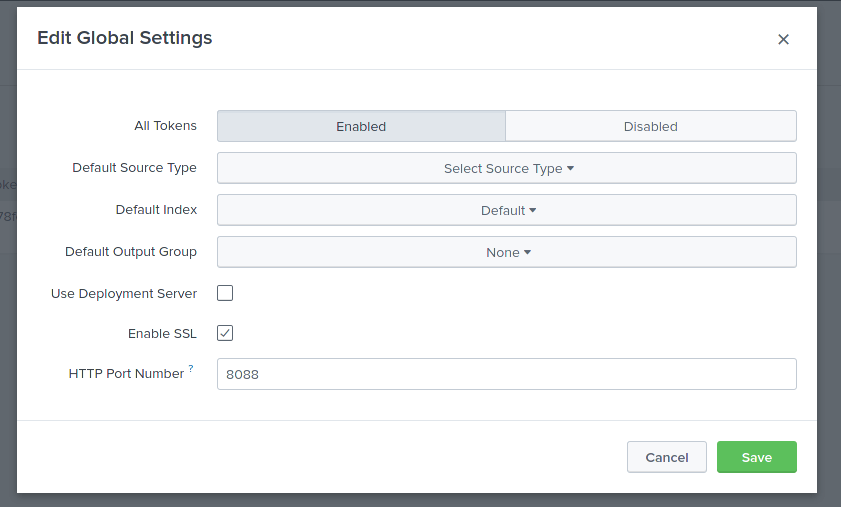

7. Enable HEC (HTTP Event Collector), Settings > Data Inputs > HTTP Event Collector > Global Settings > Default Index as “Default” > Save.

Enable HEC to listen on port 8088 with SSL.

8. Create new HEC token, Settings > Data inputs > HTTP Event Collector > New Token > Name as “openshiftlab1” > Next (Input Settings, add allowed indexes like below” > Review > Submit. Note the Token Value, we going to use this for next step.

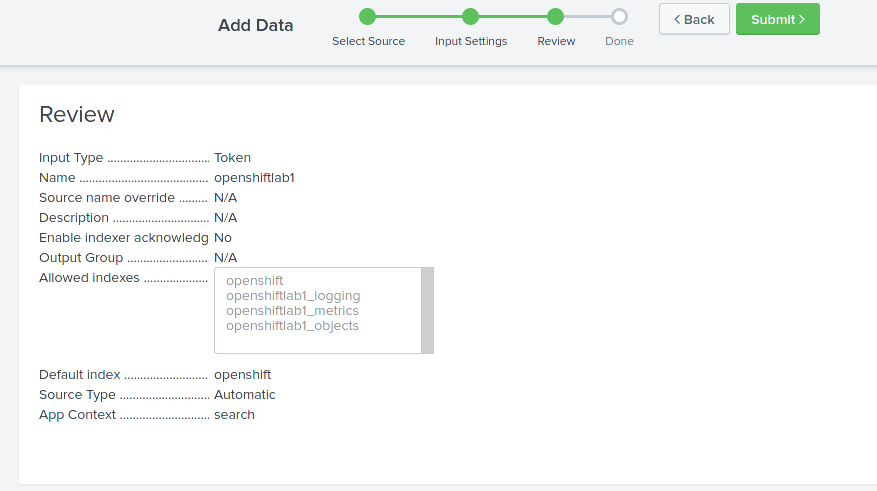

Summary page and Submit.

9. Now prepare the splunk HEC values.yaml to be use as config file, replace token with the value above:

#> cat splunk-hec.yaml
global:
  logLevel: info
  journalLogPath: /run/log/journal
  splunk:
    hec:
      host: bastion.local.bytewise.my
      port: 8088
      token: xxxxxxxxxxxxxxxxxx
      protocol: https
      indexName: openshift
      insecureSSL: true
      #clientCert:
      #clientKey:
      #caFile:
  kubernetes:
    clusterName: "openshiftlab"
    openshift: true
splunk-kubernetes-logging:
  enabled: true
  logLevel: debug
  splunk:
    hec:
      host: bastion.local.bytewise.my
      port: 8088
      token: xxxxxxxxxxxxxxxxxx
      protocol: https
      indexName: openshiftlab1_logging
      insecureSSL: true
      #clientCert:
      #clientKey:
      #caFile:
  containers:
    logFormatType: cri
  logs:
    kube-audit:
      from:
        file:
          path: /var/log/kube-apiserver/audit.log
splunk-kubernetes-metrics:
  enabled: true
  splunk:
    hec:
      host: bastion.local.bytewise.my
      port: 8088
      token: xxxxxxxxxxxxxxxxxx
      protocol: https
      indexName: openshiftlab1_metrics
      insecureSSL: true
      #clientCert:
      #clientKey:
      #caFile:
  kubernetes:
    openshift: true
splunk-kubernetes-objects:
  enabled: true
  kubernetes:
    openshift: true
  splunk:
    hec:
      host: bastion.local.bytewise.my
      port: 8088
      token: xxxxxxxxxxxxxxxxxx
      protocol: https
      insecureSSL: true
      indexName: openshiftlab1_objects
      #clientCert:
      #clientKey:
      #caFile:

10. At this stage we are now ready to deploy Splunk HEC via Helm3 cli:

#> helm install  splunk-kubernetes-logging -f splunk-hec.yaml https://github.com/splunk/splunk-connect-for-kubernetes/releases/download/1.4.0/splunk-connect-for-kubernetes-1.4.0.tgz

#>  oc get pods
NAME                                                              READY   STATUS    RESTARTS   AGE
splunk-kubernetes-logging-76l9k                                   1/1     Running   0          68s
splunk-kubernetes-logging-gmjrm                                   1/1     Running   0          68s
splunk-kubernetes-logging-sbtx7                                   1/1     Running   0          68s
splunk-kubernetes-logging-splunk-kubernetes-metrics-2vtbm         1/1     Running   0          68s
splunk-kubernetes-logging-splunk-kubernetes-metrics-6jjmh         1/1     Running   0          69s
splunk-kubernetes-logging-splunk-kubernetes-metrics-agg-662qp7q   1/1     Running   0          69s
splunk-kubernetes-logging-splunk-kubernetes-metrics-m6qwj         1/1     Running   0          69s
splunk-kubernetes-logging-splunk-kubernetes-metrics-mdr65         1/1     Running   0          68s
splunk-kubernetes-logging-splunk-kubernetes-metrics-pg2zr         1/1     Running   0          69s
splunk-kubernetes-logging-splunk-kubernetes-objects-7b9864jw9wh   1/1     Running   0          69s
splunk-kubernetes-logging-xgmh8                                   1/1     Running   0          68s
splunk-kubernetes-logging-zvrzn                                   1/1     Running   0          69s

IMPORTANT: Ensure all Splunk deployment service account has Privileged SCC. e.g

# > oc adm policy add-scc-to-user privileged -z splunk-hec-splunk-kubernetes-logging  -z splunk-hec-splunk-kubernetes-objects
securitycontextconstraints.security.openshift.io/privileged added to: ["system:serviceaccount:splunk-k8s:splunk-hec-splunk-kubernetes-logging" "system:serviceaccount:splunk-k8s:splunk-hec-splunk-kubernetes-objects"]

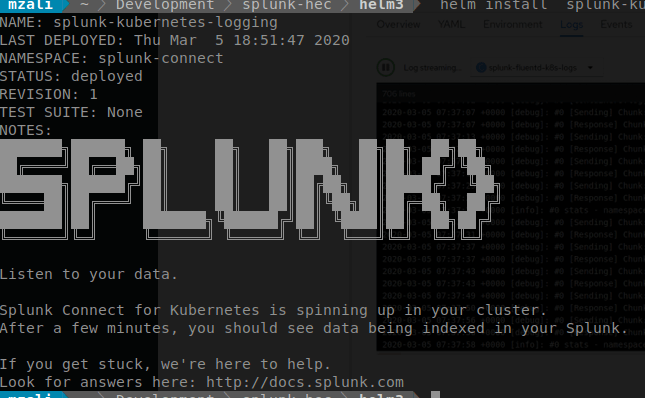

Helm3 output after helm install.

11. Ensure all the collector pod running normally.

12. Do index and metric search from UI and we can see data ingested and indexed properly on Splunk:

Audit Logging Index Search
Application Logging Index Search

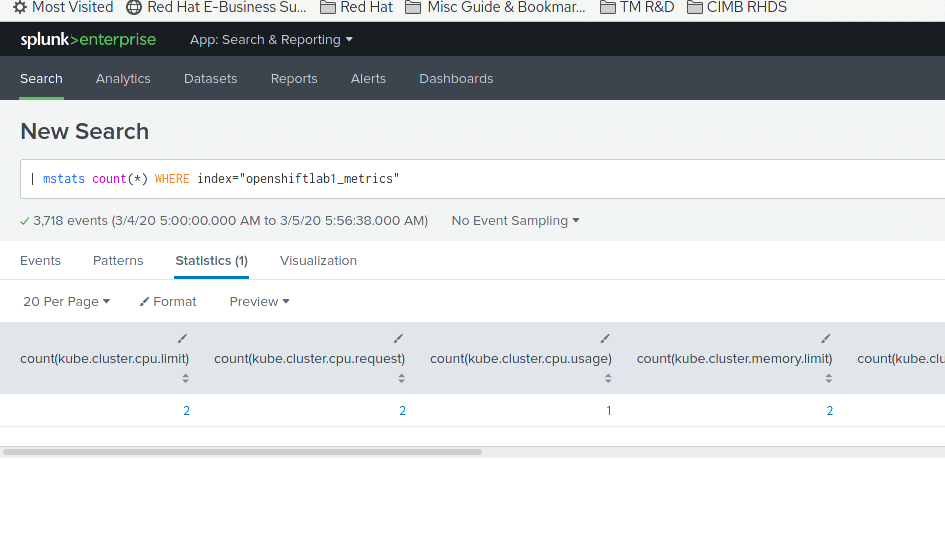

Metrics Statistics Index Search

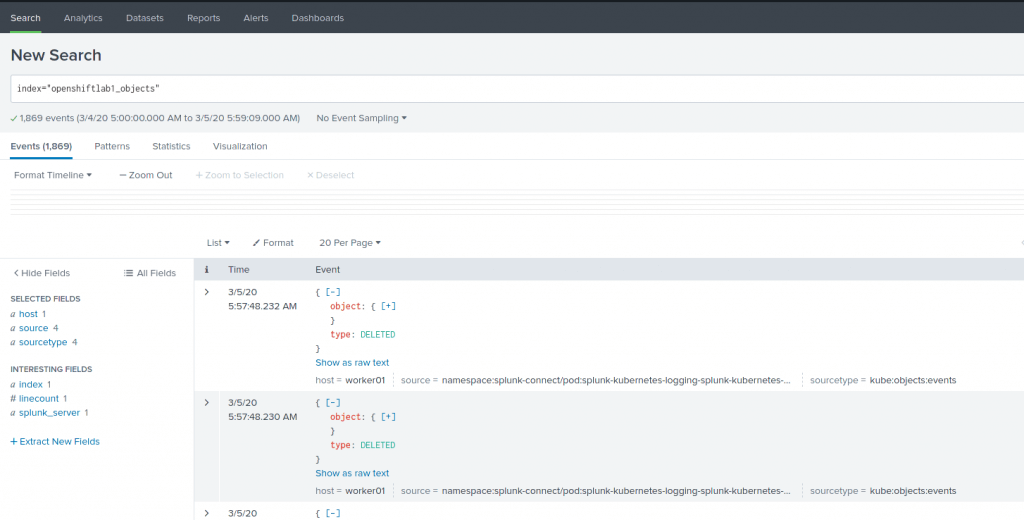

Object Index Search

Summary

Having centralized and aggregated SIEM is essential as part of organization infrastructure defends. Splunk is one of the well-known SIEM solution. We just go trough how OpenShift 4 via Splunk HEC can pipe logs, metrics and some k8s object off cluster to Splunk.
