Configure Your Windows Host to be Managed by Ansible

I was talking to my friend about Ansible automation and how we are implementing automated solutions for cloud and on-premise infrastructure. Then he told me that, his team is looking for such tools to automate their Windows servers and Desktops. When I suggested Ansible, he didn’t believe me as he thought Ansible could not do anything with Windows machines! Oh.. then I realized that there are some misunderstandings about Ansible and its supported platforms as most of them thought Ansible is only available for Linux (or Unix); yes that is true (Ansible is not natively available for Windows yet) but you know, you can use Ansible to manage your Windows machines as well (and network devices, firewall devices, cloud , containers and more)

See other articles to learn how to manage Windows using Ansible

• Configure Your Windows Host to be Managed by Ansible
• How to open WinRM ports in the Windows firewall
• Ansible Windows Management using HTTPS and SSL

( Cover: Photo by Charles Parker from Pexels )

Also Read: Automation with Ansible Guides

Watch the video for a demo

Do you know, you have more than 100 Windows modules already available to use from the Ansible Community?

Read: Installing Ansible

But like Linux managed nodes, you need to configure some setups on your Windows machine as well, so that Ansible can talk to your Windows machine and execute automated tasks. And this guide is for you if you are struggling to configure your Windows machine to manage by Ansible .

Supported Windows Operating Systems

• Windows 7
• Windows 8.1
• Windows 10
• Windows Server 2008
• Windows Server2008 R2
• Windows Server 2012
• Windows Server 2012 R2
• Windows Server 2016
• Windows Server 2019

Ansible Control Node Prerequisites

There is no special requirement on Ansible Engine or Ansible Controlnode, except winrm library. You need to install Python Winrm library for your Python environment.

$ pip install "pywinrm>=0.2.2"
## or
$ python3 -m pip install --user --ignore-installed pywinrm

Make sure, you have installed the winrm library on the exact Python environment Ansible is using. (Check ansible --version and see which Python version is used)

Windows Host Prerequisites for Ansible

Your Windows machine should meet the below requirements.

• PowerShell 3.0 or newer
• .NET 4.0 to be installed
• A WinRM listener should be created and activated

Check PowerShell Version

Open a PowerShell console and verify PowerShell version.

PS C:\Users\Administrator> (Get-Host).Version

Major  Minor  Build  Revision
-----  -----  -----  --------
5      1      14393  693

Configure WinRM

You need to configure listener and the service on the Windows machine as part of the WinRM setup. You have to execute a few steps in PowerShell for this, but fortunately, there is a readymade PowerShell script available in the Ansible repository called – ConfigureRemotingForAnsible.ps1 . You can just download and execute the same on the Windows machine as below.

What does ConfigureRemotingForAnsible.ps1 do?

• Checks for Administrator privileges — exits immediately if not running as Administrator
• Verifies PowerShell version — requires PS 3.0 or higher
• Starts the WinRM service — sets it to start automatically on boot if not already running
• Enables PS Remoting — runs Enable-PSRemoting if no session configuration or listener is found; supports a -SkipNetworkProfileCheck flag for PUBLIC network interfaces
• Sets LocalAccountTokenFilterPolicy to 1 — required registry fix to allow local accounts to authenticate remotely over WinRM without UAC token filtering
• Generates a self-signed SSL certificate — creates a 4096-bit RSA cert (SHA256) valid for 1095 days (3 years by default) with SAN entries for both hostname and FQDN
• Creates an HTTPS WinRM listener on port 5986 — binds the self-signed cert to the listener; supports -ForceNewSSLCert to replace an existing cert (useful after Sysprep)
• Configures Basic authentication — enables it by default; can be disabled with -DisableBasicAuth
• Optionally enables CredSSP authentication — only if -EnableCredSSP flag is passed
• Opens the Windows Firewall for WinRM HTTPS (port 5986) — adds or updates the firewall rule for all profiles
• Optionally opens HTTP (port 5985) firewall access — only if -GlobalHttpFirewallAccess flag is passed
• Validates the configuration — tests both HTTP and HTTPS remoting connections to localhost and reports the result
• Logs all events to the Windows Application EventLog — useful for auditing unattended runs

Note: The script itself warns that self-signed certs and basic auth are intended for dev/lab environments only. Production setups should use CA-signed certificates and Kerberos.

PS C:\Users\Administrator> $url = "https://raw.githubusercontent.com/ansible/ansible-documentation/devel/examples/scripts/ConfigureRemotingForAnsible.ps1"
PS C:\Users\Administrator> $file = "$env:temp\ConfigureRemotingForAnsible.ps1"
PS C:\Users\Administrator> (New-Object -TypeName System.Net.WebClient).DownloadFile($url, $file)
PS C:\Users\Administrator> powershell.exe -ExecutionPolicy ByPass -File $file
Self-signed SSL certificate generated; thumbprint: DD2BFCC45E7503BC9C05BA9174326B593614C733

wxf                 : http://schemas.xmlsoap.org/ws/2004/09/transfer
a                   : http://schemas.xmlsoap.org/ws/2004/08/addressing
w                   : http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd
lang                : en-US
Address             : http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous
ReferenceParameters : ReferenceParameters

Ok.

PS C:\Users\Administrator>

If you are facing any SSL/TLS issues while downloading files, please check the TLS version you have configured. You can also use TLS1.2 explicitly as below.

[Net.ServicePointManager]::SecurityProtocol = [Net.ServicePointManager]::SecurityProtocol -bor [Net.SecurityProtocolType]::Tls12

Note: If you have concerns about executing this readymade script (like the authentication it is using, the access policies etc), you can manually configure WinRM listener and the service by following WinRM setup documentation.

Ensure WinRM Ports are Open

Also make sure, ports 5985 and 5986 are open in the firewall (both OS as well as network side).

Read How to open WinRM ports in the Windows firewall.

That’s it, now you can access your Windows machine over WinRM and Ansible will be able to execute the playbook and tasks on your Windows machine.

Let us test Ansible to Windows Access

As you know, the first thing is you need to add your new machine to the inventory; something like below. I have added my new Windows machine under the host group called wind2016 .

For the testing purpose I am creating 3 entries for the same Windows machine to demonstrate connection via 5985 and 5986 ports.

[windows]
win2019-1 ansible_host=192.168.57.210
win2019-2 ansible_host=192.168.57.210
win2019-3 ansible_host=192.168.57.210

Also need to configure other parameters like ansible_connection , ansible_port , user credentials etc. Either you can put it in the same inventory or under host_vars or group_vars. For this demo, I have multple host variables in host_vars directory as follows.

Let’s run a very basic Ansible ad-hoc command with win_ping module.

1. Using winrm + 5985

Variable for winrm + 5985 method:

$  cat host_vars/win2019-1.yaml
---
# Local user with Basic Authentication
ansible_user: "Administrator"
ansible_password: "Welcome123"
ansible_port: "5985"
ansible_connection: "winrm"
ansible_winrm_transport: "basic"
ansible_winrm_server_cert_validation: ignore

Test the connectivity using ansible-navigator.

$  ansible-navigator exec -- ansible win2019-1 -m win_ping -i inventory.ini -vvv
...<removed>...
<192.168.57.210> ESTABLISH WINRM CONNECTION FOR USER: Administrator on PORT 5985 TO 192.168.57.210
EXEC (via pipeline wrapper)
win2019-1 | SUCCESS => {
    "changed": false,
    "invocation": {
        "module_args": {
            "data": "pong"
        }
    },
    "ping": "pong"
}

2. winrm + 5986

Variable for winrm + 5986 method.

$  cat host_vars/win2019-2.yaml
---
# Local user with 5986
ansible_user: "Administrator"
ansible_password: "Welcome123"
ansible_port: "5986"
ansible_connection: "winrm"
ansible_winrm_transport: "basic"
ansible_winrm_server_cert_validation: ignore

Test the connectivity using ansible-navigator.

$  ansible-navigator exec -- ansible win2019-2 -m win_ping -i inventory.ini -vvv
...<removed>...
<192.168.57.210> ESTABLISH WINRM CONNECTION FOR USER: Administrator on PORT 5986 TO 192.168.57.210
EXEC (via pipeline wrapper)
win2019-2 | SUCCESS => {
    "changed": false,
    "invocation": {
        "module_args": {
            "data": "pong"
        }
    },
    "ping": "pong"
}

3. ntlm + 5986

Variable for ntlm + 5986 method.

$  cat host_vars/win2019-3.yaml
---
# Local user with HTTPS
ansible_user: "Administrator"
ansible_password: "Welcome123"
ansible_port: "5986"
ansible_connection: "winrm"
ansible_winrm_transport: "ntlm"
ansible_winrm_server_cert_validation: ignore

Test the connectivity using ansible-navigator.

 $  ansible-navigator exec -- ansible win2019-3 -m win_ping -i inventory.ini -vvv
...<removed>...
<192.168.57.210> ESTABLISH WINRM CONNECTION FOR USER: Administrator on PORT 5986 TO 192.168.57.210
EXEC (via pipeline wrapper)
win2019-3 | SUCCESS => {
    "changed": false,
    "invocation": {
        "module_args": {
            "data": "pong"
        }
    },
    "ping": "pong"
}

Note: For production, you need to use a password encrypted using Ansible Vault or keep credentials in Ansible Automation Platform. Also, you may need to create a different user rather than the Administrator.

You can see the sample executions above, Ansible can reach our Windows machine and is able to communicate. (Please note, the win_ping is not simple network ping, but Ansible will login to the machine and verify the access)

What about writing a playbook to create a new user on a Windows machine? Here see the very basic playbook and let’s test it.

---
- name: "Create New user on Windows Machine"
  hosts: "{{ NODES }}"
  tasks:
    - name: "Check Windows machines access using win_ping"
      win_ping:
      when: ansible_os_family == 'Windows'

    - name: Create a new User
      win_user:
        name: john
        password: MyP4ssw0rd
        state: present
        groups:
          - Users
     when: ansible_os_family == 'Windows'

Execute the playbook using ansible-playbook command. Please note the NODES variable as I don’t usually hardcode the hosts inside the playbook; instead I pass the hosts list while running ansible-playbook command as shown below.

$ ansible-playbook test-access.yaml -e "NODES=windows"

PLAY [Testing Basic Connection to Managed Nodes] ***********************************************************

TASK [Gathering Facts] *************************************************************************************
ok: [10.6.1.216]
ok: [vm-win2016-dev]

TASK [Test Windows machines using win_ping] ****************************************************************
ok: [10.6.1.216]
ok: [vm-win2016-dev]

TASK [Create a new User] ***********************************************************************************
changed: [vm-win2016-dev]
changed: [10.6.1.216]

PLAY RECAP *************************************************************************************************
10.6.1.216                 : ok=3    changed=1    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
vm-win2016-dev             : ok=3    changed=1    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

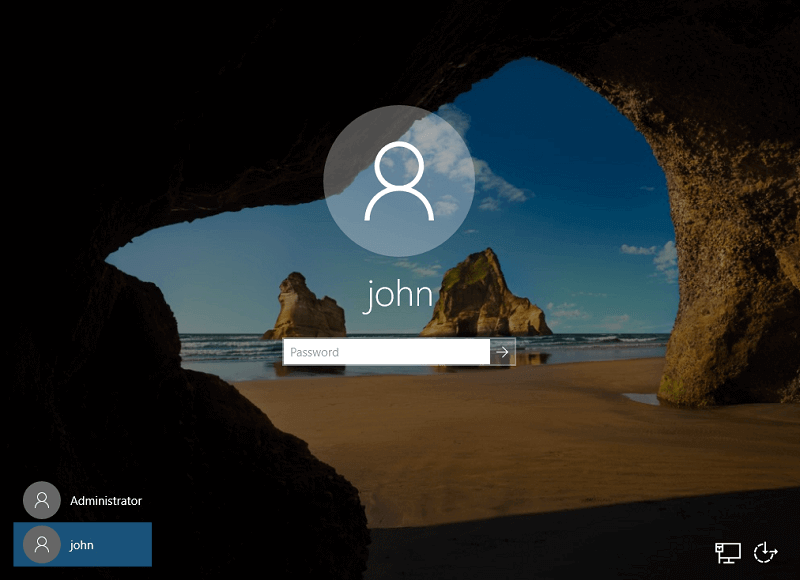

Yes, it’s working and Ansible already completed all tasks successfully. Let’s go and check the Windows machine for new users.

Troubleshooting

If you are facing an error with the basic authentication, then check if the AllowUnencrypted option is enabled or not. You can enable the AllowUnencrypted option by using the following command. (Not recommended for a production environment)

PS C:\Users\Administrator>
winrm set winrm/config/service '@{AllowUnencrypted="true"}'

Service
    RootSDDL = O:NSG:BAD:P(A;;GA;;;BA)(A;;GR;;;IU)S:P(AU;FA;GA;;;WD)(AU;SA;GXGW;;;WD)
    MaxConcurrentOperations = 4294967295
    MaxConcurrentOperationsPerUser = 1500
    EnumerationTimeoutms = 240000
    MaxConnections = 300
    MaxPacketRetrievalTimeSeconds = 120

AllowUnencrypted = true

    Auth
        Basic = true
        Kerberos = true
        Negotiate = true
        Certificate = false
        CredSSP = false
        CbtHardeningLevel = Relaxed
    DefaultPorts
        HTTP = 5985
        HTTPS = 5986
    IPv4Filter = *
    IPv6Filter = *
    EnableCompatibilityHttpListener = false
    EnableCompatibilityHttpsListener = false
    CertificateThumbprint
    AllowRemoteAccess = true
