You might already knew that, Ansible can manage Windows servers as well. And this is a supporting article for Configure Your Windows Host to be Managed by Ansible.
Ansible is using WinRM (Windows Remote Management) to connect to the Windows machines. You need to configure listener and the service on the Windows machine as part of WinRM setup and this is clearly explained in this document.
See other articles to learn how to manage windows using Ansible
Next, we need to make sure, ports 5985 and 5986 (HTTPS) are open in firewall (both OS as well as network side).
Open Windows Firewall from Start -> Run -> Type wf.msc.
(Or Open Computer Configuration -> Policies -> Windows Settings -> Security Settings -> Windows Firewall with Advanced Security -> Windows Firewall with Advanced Security -> Inbound Rules.)
Right-click the Inbound Rules node and choose New Rule.

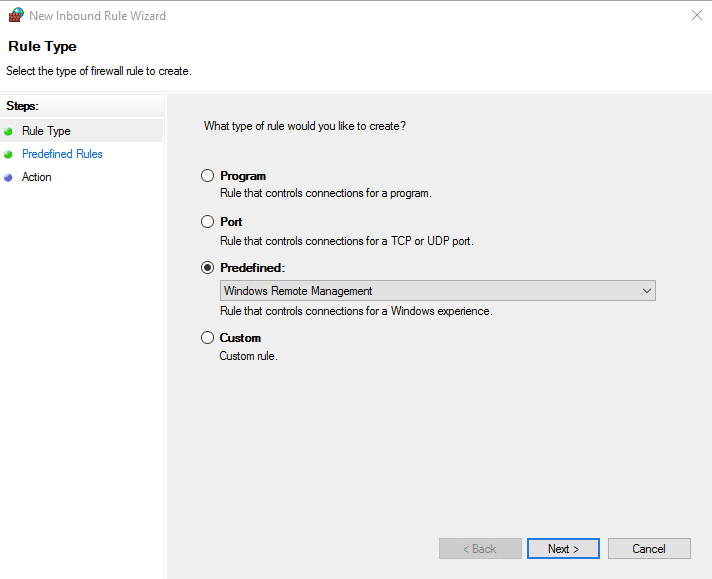

Select the predefined rule “Windows Remote Management” from the dropdown option
Select Rules as needed
Select Allow the connections

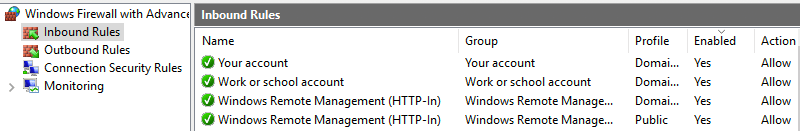

Verify the same in console
Note: If you have already executed the ConfigureRemotingForAnsible.ps1 successfully, you can directly try the connection from an Ansible machine. Below step is to ensure that WinRM is working from same managed node.
Open a command prompt or powershell and execute
winrm e winrm/config/listener.
C:\Users\Administrator>winrm e winrm/config/listener Listener Address = * Transport = HTTP Port = 5985 Hostname Enabled = true URLPrefix = wsman CertificateThumbprint ListeningOn = 10.0.2.15, 127.0.0.1, 192.168.99.103, ::1, fe80::5efe:10.0.2.15%3, fe80::5efe:192.168.99.103%13, fe80::785d:9659:c4d4:9b0f%16 Listener Address = * Transport = HTTPS Port = 5986 Hostname = WIN-CCUQI8Q4RMH Enabled = true URLPrefix = wsman CertificateThumbprint = 64E69568BD75F3068BDCBF7ED819E4EA9ED1FDA3 ListeningOn = 10.0.2.15, 127.0.0.1, 192.168.99.103, ::1, fe80::5efe:10.0.2.15%3, fe80::5efe:192.168.99.103%13, fe80::785d:9659:c4d4:9b0f%16
Check WinRM Configuration
C:\Users\Administrator>winrm get winrm/config Config MaxEnvelopeSizekb = 500 MaxTimeoutms = 60000 MaxBatchItems = 32000 MaxProviderRequests = 4294967295 Client NetworkDelayms = 5000 URLPrefix = wsman AllowUnencrypted = false Auth Basic = true Digest = true Kerberos = true Negotiate = true Certificate = true CredSSP = false DefaultPorts HTTP = 5985 HTTPS = 5986 TrustedHosts Service RootSDDL = O:NSG:BAD:P(A;;GA;;;BA)(A;;GR;;;IU)S:P(AU;FA;GA;;;WD)(AU;SA;GXGW;;;WD) MaxConcurrentOperations = 4294967295 MaxConcurrentOperationsPerUser = 1500 EnumerationTimeoutms = 240000 MaxConnections = 300 MaxPacketRetrievalTimeSeconds = 120 AllowUnencrypted = true Auth Basic = true Kerberos = true Negotiate = true Certificate = false CredSSP = false CbtHardeningLevel = Relaxed DefaultPorts HTTP = 5985 HTTPS = 5986 IPv4Filter = * IPv6Filter = * EnableCompatibilityHttpListener = false EnableCompatibilityHttpsListener = false CertificateThumbprint AllowRemoteAccess = true Winrs AllowRemoteShellAccess = true IdleTimeout = 7200000 MaxConcurrentUsers = 2147483647 MaxShellRunTime = 2147483647 MaxProcessesPerShell = 2147483647 MaxMemoryPerShellMB = 2147483647 MaxShellsPerUser = 2147483647 C:\Users\Administrator>
You can verify connectivity using any method but since I am using this for Ansible, I will check the port connection from my Ansible machine (Any linux machine)
$ nc -vz 192.168.99.103 5985 Connection to 192.168.99.103 port 5985 [tcp/wsman] succeeded !
That’s it, now you can access your Windows machine over WinRM and Ansible will be able to execute playbook and tasks on your Windows machine.
